ModelS

DERBY "c" SERIES

Derby “c” Serie is ceiling mounted and also offers the following features:

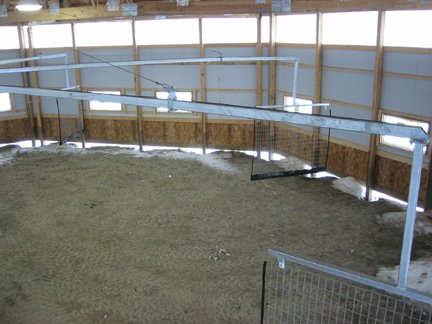

Maximize the use of your  building with a round pen in the center and exercise track on perimeter!

Center ring diameter:

45' for 60'unit
49' for 65'unit
54' for 70'unit

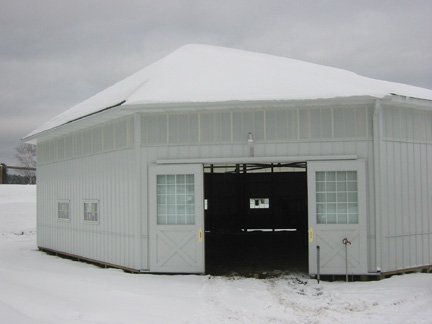

Outside view of building (By Morton Bldg)

  • Hot dipped galvanized frame.
  • Maintenance free & silent AC gear/motor with direct drive (No Belts & No Chains)
  • Heavy duty large turn table bearing (Made in Germany)
  • Partitions mounted on hinges for safety.
  • Electrical fencer operated from gate.
  • Emergency stop on controllers.
  • Pre-programmed controller (option) which is more reliable and easier to use.

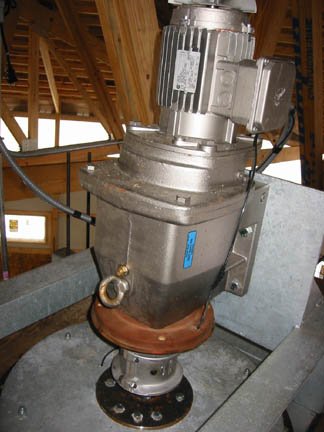

 EuroXcisers are powered by “NORD”

*   These  gear/motor  units  have been designed in Germany and are made in the  USA.   The  UNICASE  TM  design eliminates all risk of oil leaks and make these units  virtually maintenance free.

More details at www.nord.com

*   These  gear boxes  use high quality Shell Oil  for  use  in  extreme weather conditions.
* These gear boxes are equipped with high load shaft bearings.
*  The A/C  motors along with the high quality  gearing  make these  units run silent,  run cool  & are energy efficient.
* The direct drive is made possible via a special coupling designed in France which  can  take  misalignments & can absorb shocks.

No more belts or chains to adjust or replace!

SPECIFICATIONS

Number of horses:
4,5 and 6 horse configuration
Dimensions:
Stock sizes 60’,65’ and 70’ diameter.
Clearance at center 11’+
Standard 8’ wide exercise area.
Partitions:  (See partition page)
7’ wide by 5’ to 6’ high.
Speed:
From 0 to 22+Mph
Motors:
1 1/2 HP  A/C motor (2HP optional)

2HP motor stock on 70'units
Controllers: (See controller page)
Manual or Pre-programmed (option)
Warranty:
10 yrs frame,3 yrs Gear/motor,1 yr  electricals
