EuroXciser

DERBY "e" SERIES

• Hot dipped galvanized frame.
• Maintenance free & silent AC gear/motor with direct drive (No Belts & No Chains)
• Heavy duty large turn table bearing (Made in Germany) - Same as Derby Serie
• Arms and partitions mounted on hinges for safety.Electrical fencer operated from gate.
• Emergency stop on controllers.
• Pre-programmed controller (option) which is more reliable and easier to use.

 EuroXcisers are powered by “NORD”

*   These  gear/motor  units  have been designed in Germany and are made in the  USA.   The  UNICASE  TM  design eliminates all risk of oil leaks and make these units  virtually maintenance free.

More details at www.nord.com

*   These  gear boxes  use high quality Shell Oil  for  use  in  extreme weather conditions.
* These gear boxes are equipped with high load shaft bearings.
*  The A/C  motors along with the high quality  gearing  make these  units run silent,  run cool  & are energy efficient.
* The direct drive is made possible via a special coupling designed in France which  can  take  misalignments & can absorb shocks.

No more belts or chains to adjust or replace!

SPECIFICATIONS

Number of horses:
Comes in  4 horse configuration ONLY
Dimensions:
Stock sizes 50’ diameter.(Smaller size at no extra cost)
Height at center under 11’(Easy to fit indoor).
Standard 8’ wide exercise area.
Partitions:  (See partition page)
7’ wide by 5’ to 6’ high.
Speed:
From 0 to 15+Mph
Motors:
3/4HP  A/C motor
Controllers: (See controller page)
Manual or Pre-programmed (option)
Warranty:
10 yrs frame,3 yrs Gear/motor,1 yr  electricals

  X-Stand option :

This option is available for Derby"e" Series only.

It is very stable and makes it easier to move to a different location

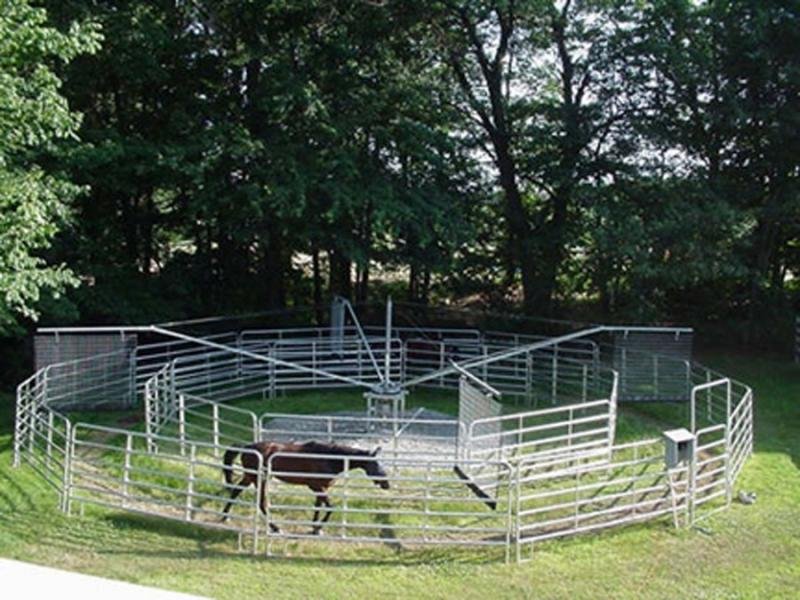

Picture sent by one of our customers in  Massachusetts. Fences and Derby"e" can  easily  be  moved  to  a different location when needed.
