DERBY "e" SERIES

• Hot dipped galvanized frame.
• Maintenance free & silent AC gear/motor with direct drive (No Belts & No Chains)
• Heavy duty large turn table bearing (Made in Germany) - Same as Derby Series
• Arms and partitions mounted on hinges for safety. Electrical fencer operated from gate.
• Emergency stop on controllers.
• Pre-programmed controller (option) which is more reliable and easier to use.

 EuroXcisers are powered by “NORD”

• These gear/motor units have been designed in Germany and are made in the USA.
• The UNICASE TM design eliminates all risk of oil leaks and make these units virtually maintenance free.

More details at www.nord.com

• These gear boxes use high quality Shell Oil for use in extreme weather conditions.
• These gear boxes are equipped with high load shaft bearings.
• The A/C motors along with the high quality gearing make these units run silent, run cool & are energy efficient.
• The direct drive is made possible via a special coupling designed in France which can take misalignments & can absorb shocks.

No more belts or chains to adjust or replace!



SPECIFICATIONS

• Number of horses:
  Comes in  4 horse configuration ONLY
• Dimensions:
  Stock sizes 50’ diameter. (Smaller size at no extra cost)
• Height at center under 11’(Easy to fit indoor).
• Standard 8’ wide exercise area.
• Partitions:  (See partition page)
  7’ wide by 5’ to 6’ high.
• Speed:
  From 0 to 15+Mph
• Motors:
  3/4HP A/C motor
• Controllers: (See controller page). Manual or Pre-programmed (option)
• Warranty:
  10 yrs frame,3 yrs Gear/motor,1 yr  electricals

  X-Stand option :

• This option is available for Derby"e" Series only.
• It is very stable and makes it easier to move to a different location

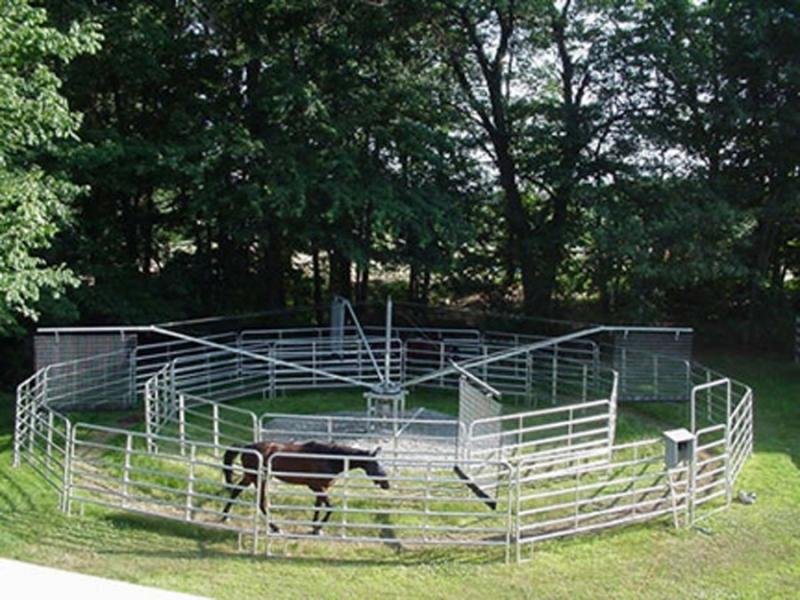

Picture sent by one of our customers in Massachusetts. Fences and Derby "e" can easily be moved to a different location when needed.
