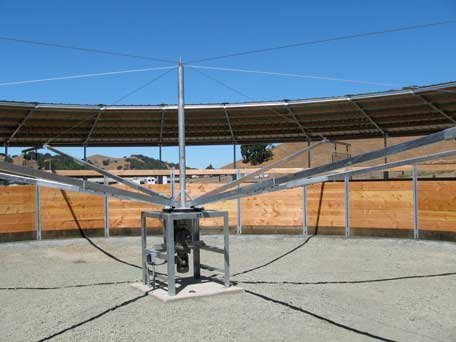

DERBIE SERIES



The only machine on the market today with ALL the following features:

• Hot dipped galvanized frame made of structural steel.
• Maintenance free & silent AC gear/motor with direct drive (No Belts & No Chains).

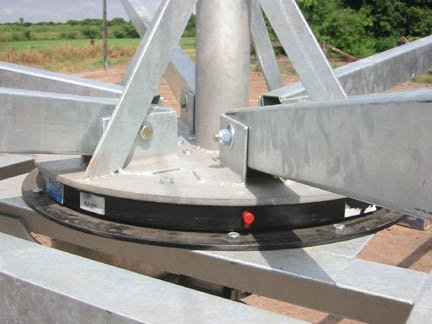

• Heavy Duty large turn table bearing (Made in Germany).
• Arms and partitions mounted on hinges for flexibility and safety.
• Electrical fencer operated from gate.
• Emergency stop on controllers.
• Full rubber partitions (option) for maximum safety and reliability.
• Pre-programmed controller (option) which is more reliable and easier to use.

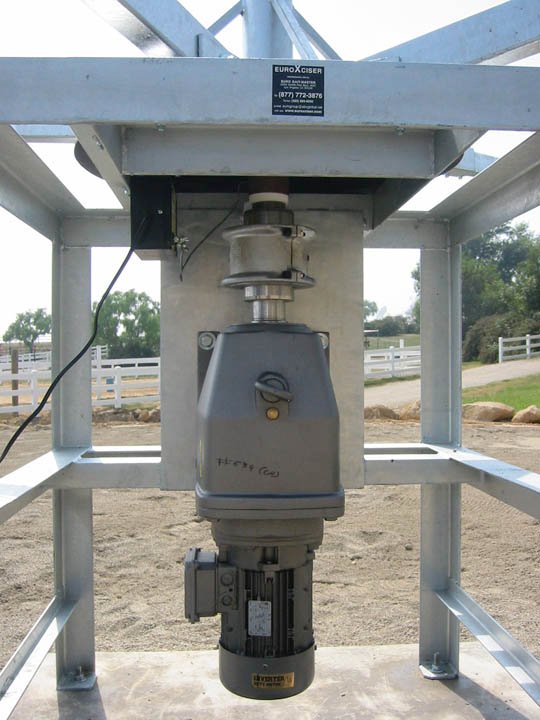

• These  gear/motor  units  have been designed in Germany and are made in the  USA.
• The  UNICASE  TM  design eliminates all risk of oil leaks and make these units  virtually maintenance free.

More details at www.nord.com

• These  gear boxes  use high quality Shell Oil  for  use  in  extreme weather conditions.
• These gear boxes are equipped with high load shaft bearings.
• The A/C  motors along with the high quality  gearing  make these  units run silent,  run cool  & are energy efficient.
• The direct drive is made possible via a special coupling designed in France which  can  take  misalignments & can absorb shocks.

No more belts or chains to adjust or replace!

 Specifications

• Number of horses:
  Comes in 4, 5, 6 horse configuration
• Dimensions:
  Stock sizes 60’, 65’ & 72’ diameter.
  Custom sizes available at no extra charge.
• Height at center under 11’(Easy to fit indoor).
• Standard 8’ wide exercise area.
  Partitions: (See partitions page)
  7’ wide by 5’ to 6’ high.
• Speed:
  From 0 to 20+Mph
• Motors:
  1 1/2HP  A/C motor or 2HP (option 2HP motor is stock on 72’ units)
• Controllers: (See controllers page ). Manual or Pre-programmed (option)
• Warranty:
  10 yrs frame,3 yrs Gear/motor,1 yr  electricals


(Large turn table bearing made in Germany)
